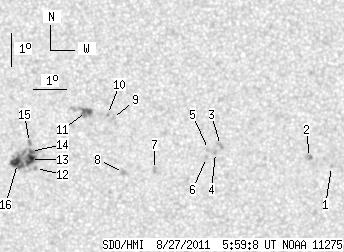

SDO HMI 2011-08-27 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.46 | 82.85 | 10.21 | 41.25 | 7.43 | 344.52 | -4.92 | 94.43 | 0.0911 | 34.0 | -18.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.95 | 352.17 | 2.73 | 267.27 | 0.0475 | -862.0 | -663.8 | |
| 0.00 | 3.50 | 0.00 | 1.74 | 7.23 | 351.50 | 2.06 | 274.02 | 0.0359 | -1192.0 | -928.2 | |
| 0.00 | 3.41 | 0.00 | 1.69 | 7.60 | 348.78 | -0.66 | 52.20 | 0.0145 | -990.0 | -825.2 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 7.39 | 348.63 | -0.81 | 69.88 | 0.0150 | -981.0 | -798.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.48 | 348.42 | -1.03 | 69.22 | 0.0191 | -840.0 | -702.0 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 7.23 | 348.36 | -1.09 | 82.41 | 0.0191 | -948.0 | -686.7 | |
| 0.00 | 2.33 | 0.00 | 1.16 | 6.86 | 346.77 | -2.67 | 94.74 | 0.0467 | -1009.0 | -811.6 | |
| 0.00 | 3.86 | 0.00 | 1.92 | 6.77 | 345.82 | -3.62 | 94.95 | 0.0632 | -959.0 | -737.4 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 8.40 | 345.47 | -3.97 | 71.35 | 0.0726 | -897.0 | -592.2 | |
| 0.00 | 1.26 | 0.00 | 0.62 | 8.52 | 345.32 | -4.12 | 70.47 | 0.0758 | -1010.0 | -874.4 | |
| 3.05 | 13.19 | 1.52 | 6.56 | 8.60 | 344.67 | -4.77 | 71.94 | 0.0869 | -1194.3 | -765.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.86 | 343.13 | -6.31 | 91.74 | 0.1097 | 1003.0 | 867.3 | |
| 5.48 | 42.72 | 2.73 | 21.31 | 7.13 | 342.97 | -6.47 | 89.26 | 0.1124 | 1375.5 | 830.9 | |
| 1.88 | -13.00 | 0.94 | -13.00 | 7.37 | 342.97 | -6.48 | 87.09 | 0.1125 | 921.3 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.21 | 7.64 | 342.93 | -6.51 | 84.69 | 0.1134 | 1164.0 | 877.4 | |
| 10.05 | -13.00 | 5.02 | -13.00 | 7.00 | 342.57 | -6.87 | 90.32 | 0.1193 | 1089.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
