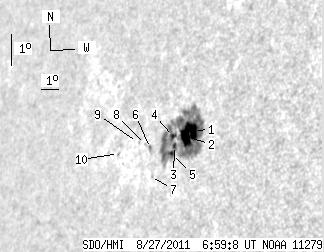

SDO HMI 2011-08-27 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.62 | 162.64 | 26.53 | 146.34 | 13.35 | 291.74 | -57.16 | 78.66 | 0.8359 | -537.4 | -137.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.87 | 157.88 | 8.76 | 141.81 | 13.59 | 292.21 | -56.69 | 78.37 | 0.8315 | -982.4 | -160.7 | |
| 12.75 | -1.00 | 11.40 | -1.00 | 13.36 | 291.83 | -57.06 | 78.64 | 0.8350 | -700.0 | 999999 | |
| 1.71 | -1.00 | 1.55 | -1.00 | 13.03 | 291.31 | -57.58 | 79.04 | 0.8398 | -526.2 | 999999 | |
| 3.14 | -1.00 | 2.86 | -1.00 | 13.29 | 291.16 | -57.74 | 78.72 | 0.8412 | -322.3 | 999999 | |
| 2.15 | -1.00 | 1.96 | -1.00 | 12.78 | 291.23 | -57.66 | 79.34 | 0.8406 | -430.7 | 999999 | |
| 0.00 | 2.24 | 0.00 | 2.11 | 12.80 | 289.97 | -58.92 | 79.30 | 0.8520 | 647.0 | 542.6 | |
| 0.00 | 0.36 | 0.00 | 0.33 | 11.97 | 290.28 | -58.62 | 80.29 | 0.8494 | 394.0 | 430.2 | |
| 0.00 | 0.90 | 0.00 | 0.85 | 12.89 | 289.63 | -59.26 | 79.20 | 0.8550 | 383.0 | 349.5 | |
| 0.00 | 0.36 | 0.00 | 0.35 | 12.90 | 289.14 | -59.76 | 79.18 | 0.8594 | 380.0 | 367.0 | |
| 0.00 | 0.90 | 0.00 | 0.89 | 12.45 | 288.11 | -60.78 | 79.68 | 0.8682 | 418.0 | 373.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
