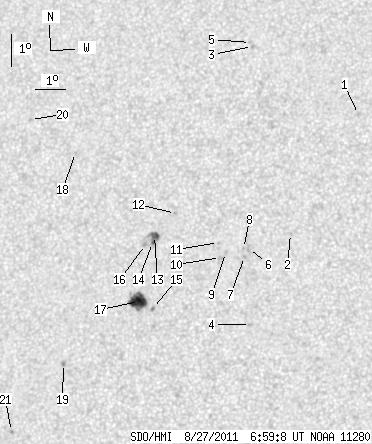

SDO HMI 2011-08-27 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.95 | 62.40 | 13.91 | 33.44 | 17.89 | 328.95 | -19.94 | 59.02 | 0.3823 | 207.5 | -82.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.00 | 22.62 | 334.99 | -13.91 | 39.29 | 0.3518 | 705.0 | 398.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.85 | 333.09 | -15.81 | 51.08 | 0.3328 | -724.0 | -557.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 24.65 | 331.09 | -17.81 | 42.15 | 0.4159 | 978.0 | 669.1 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 16.00 | 332.03 | -16.87 | 60.15 | 0.3230 | -829.0 | -553.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 24.78 | 331.00 | -17.90 | 42.06 | 0.4182 | 601.0 | 536.4 | |
| 0.00 | 2.60 | 0.00 | 1.37 | 18.34 | 331.74 | -17.16 | 54.43 | 0.3458 | -829.0 | -740.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 18.09 | 331.63 | -17.27 | 55.21 | 0.3450 | -1083.0 | -894.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.33 | 331.57 | -17.32 | 54.68 | 0.3479 | -830.0 | -635.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 18.19 | 330.98 | -17.91 | 55.86 | 0.3546 | -849.0 | -660.4 | |
| 0.00 | 2.69 | 0.00 | 1.43 | 18.03 | 330.83 | -18.06 | 56.45 | 0.3553 | -812.0 | -648.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.49 | 330.72 | -18.18 | 55.49 | 0.3606 | -685.0 | -590.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 19.33 | 329.16 | -19.73 | 55.53 | 0.3882 | -650.0 | -448.2 | |
| 4.67 | 9.78 | 2.51 | 5.26 | 18.62 | 328.53 | -20.36 | 57.86 | 0.3911 | -1061.6 | -826.0 | |
| 1.26 | -13.00 | 0.68 | -13.00 | 18.40 | 328.49 | -20.40 | 58.41 | 0.3900 | -875.1 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 16.37 | 328.73 | -20.17 | 63.00 | 0.3728 | 954.0 | 815.7 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 18.33 | 328.26 | -20.63 | 58.82 | 0.3926 | -736.0 | -574.0 | |
| 20.02 | 23.79 | 10.72 | 12.74 | 16.57 | 328.23 | -20.66 | 63.01 | 0.3812 | 1060.3 | 553.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 21.07 | 325.43 | -23.46 | 55.95 | 0.4503 | 682.0 | 514.0 | |
| 0.00 | 2.24 | 0.00 | 1.21 | 14.56 | 325.91 | -22.98 | 69.74 | 0.4045 | 1011.0 | 815.4 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 22.02 | 323.65 | -25.25 | 55.82 | 0.4799 | 714.0 | 500.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 12.41 | 324.37 | -24.52 | 75.67 | 0.4201 | 896.0 | 709.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
