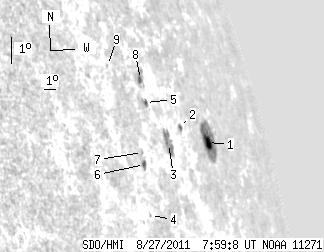

SDO HMI 2011-08-27 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.04 | 68.66 | 18.33 | 119.96 | 17.18 | 63.05 | 74.70 | 285.89 | 0.9585 | -121.1 | -144.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 34.20 | 8.62 | 68.08 | 16.76 | 65.13 | 76.78 | 285.54 | 0.9686 | -506.2 | -30.6 | |
| 0.90 | 2.60 | 1.51 | 4.38 | 17.58 | 62.51 | 74.16 | 286.27 | 0.9566 | -146.3 | -50.2 | |
| 0.00 | 16.60 | 0.00 | 25.71 | 17.23 | 60.90 | 72.55 | 285.85 | 0.9485 | -686.0 | -542.0 | |
| 0.00 | 0.99 | 0.00 | 1.31 | 15.35 | 57.53 | 69.19 | 283.74 | 0.9295 | 154.0 | 103.6 | |
| 0.54 | 2.06 | 0.79 | 3.04 | 18.65 | 59.91 | 71.57 | 287.32 | 0.9430 | -602.5 | -482.2 | |
| 2.60 | 3.86 | 3.55 | 5.26 | 16.88 | 58.18 | 69.83 | 285.40 | 0.9333 | 284.6 | 341.6 | |
| 0.00 | 0.99 | 0.00 | 1.36 | 17.24 | 58.30 | 69.96 | 285.79 | 0.9340 | 253.0 | 240.6 | |
| 2.60 | 6.37 | 3.86 | 9.51 | 19.36 | 60.14 | 71.80 | 288.08 | 0.9442 | 375.7 | 197.5 | |
| 0.00 | 0.99 | 0.00 | 1.31 | 20.09 | 57.66 | 69.31 | 288.85 | 0.9300 | 175.0 | 112.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
