SDO HMI 2011-08-27 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.39 | 0.00 | 6.90 | 18.68 | 359.47 | 11.12 | 319.52 | 0.2781 | -511.0 | -346.6 | |
|
previous
or next observation for the same group /

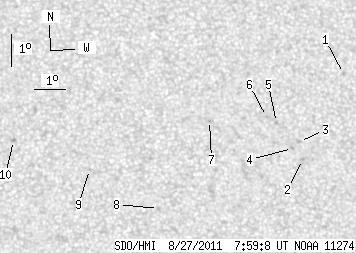

back to the solar disc SDO HMI 2011-08-27 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.71 | 20.66 | 3.76 | 15.41 | 313.84 | 0.3463 | -713.0 | -426.2 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 18.04 | 2.16 | 13.81 | 310.42 | 0.2995 | -975.0 | -758.3 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 18.60 | 2.11 | 13.76 | 311.99 | 0.3046 | -708.0 | -536.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.39 | 1.86 | 13.51 | 311.93 | 0.2994 | -953.0 | -825.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 19.20 | 1.40 | 13.05 | 314.95 | 0.3027 | -843.0 | -706.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 19.40 | 1.09 | 12.74 | 316.10 | 0.3012 | -799.0 | -701.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.32 | 359.21 | 10.86 | 320.27 | 0.2795 | -850.0 | -692.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.64 | 357.41 | 9.06 | 317.98 | 0.2264 | -912.0 | -627.8 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 17.88 | 355.25 | 6.90 | 328.69 | 0.2211 | 620.0 | 399.8 | |
| 0.00 | 2.42 | 0.00 | 1.23 | 18.80 | 352.84 | 4.50 | 339.95 | 0.2175 | 1023.0 | 730.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
