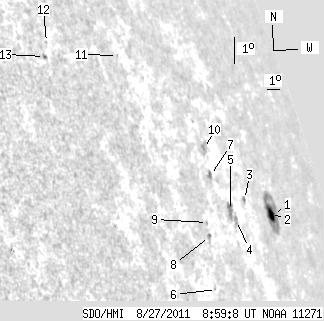

SDO HMI 2011-08-27 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 65.08 | 13.42 | 117.54 | 17.33 | 63.16 | 75.36 | 286.09 | 0.9613 | -172.2 | -119.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 34.20 | 3.92 | 70.72 | 16.71 | 65.53 | 77.73 | 285.54 | 0.9724 | 362.0 | -37.0 | |
| 4.49 | -1.00 | 9.12 | -1.00 | 16.79 | 65.18 | 77.38 | 285.60 | 0.9711 | -467.0 | 999999 | |
| 0.00 | 2.15 | 0.00 | 3.74 | 17.53 | 62.62 | 74.82 | 286.25 | 0.9598 | -70.0 | -60.6 | |
| 0.00 | 4.49 | 0.00 | 7.20 | 17.04 | 61.14 | 73.34 | 285.67 | 0.9527 | -625.0 | -514.9 | |
| 0.00 | 8.71 | 0.00 | 13.78 | 17.39 | 60.83 | 73.04 | 286.03 | 0.9511 | -653.0 | -540.3 | |
| 0.00 | 0.63 | 0.00 | 0.85 | 15.28 | 57.56 | 69.76 | 283.68 | 0.9331 | -69.0 | 31.1 | |
| 0.00 | 3.14 | 0.00 | 4.75 | 18.61 | 59.95 | 72.15 | 287.29 | 0.9462 | -636.0 | -509.1 | |
| 0.00 | 2.51 | 0.00 | 3.51 | 16.88 | 58.19 | 70.39 | 285.41 | 0.9366 | 469.0 | 313.1 | |
| 0.00 | 0.72 | 0.00 | 1.01 | 17.30 | 58.37 | 70.57 | 285.87 | 0.9376 | 225.0 | 175.2 | |
| 0.00 | 5.83 | 0.00 | 8.94 | 19.44 | 60.21 | 72.42 | 288.18 | 0.9475 | 471.0 | 249.5 | |
| 0.00 | 0.90 | 0.00 | 1.13 | 22.97 | 55.61 | 67.81 | 292.00 | 0.9211 | 437.0 | 385.0 | |
| 0.00 | 0.72 | 0.00 | 0.77 | 23.92 | 50.82 | 63.02 | 293.32 | 0.8890 | -309.0 | -310.8 | |
| 0.36 | 1.08 | 0.38 | 1.14 | 23.51 | 50.32 | 62.52 | 292.90 | 0.8851 | -438.2 | -342.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
