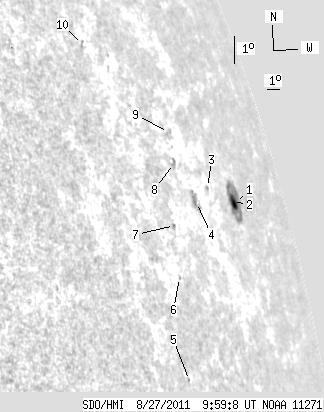

SDO HMI 2011-08-27 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.18 | 60.31 | 15.22 | 114.31 | 17.22 | 63.37 | 76.12 | 286.01 | 0.9647 | -157.3 | -99.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 34.73 | 4.65 | 74.59 | 16.75 | 65.47 | 78.22 | 285.61 | 0.9743 | 325.6 | -7.1 | |
| 5.03 | -1.00 | 10.57 | -1.00 | 16.82 | 65.11 | 77.86 | 285.66 | 0.9729 | -496.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 2.89 | 17.56 | 62.60 | 75.35 | 286.30 | 0.9622 | -159.0 | -117.4 | |
| 0.00 | 10.05 | 0.00 | 16.44 | 17.28 | 60.94 | 73.69 | 285.94 | 0.9544 | -720.0 | -547.9 | |
| 0.00 | 0.99 | 0.00 | 1.31 | 12.24 | 56.26 | 69.01 | 280.39 | 0.9292 | 93.0 | 56.0 | |
| 0.00 | 1.17 | 0.00 | 1.62 | 15.33 | 57.41 | 70.16 | 283.75 | 0.9355 | 206.0 | 106.5 | |
| 0.00 | 1.79 | 0.00 | 2.57 | 16.87 | 58.21 | 70.96 | 285.42 | 0.9399 | 327.0 | 313.9 | |
| 0.00 | 4.13 | 0.00 | 6.39 | 18.65 | 59.86 | 72.61 | 287.35 | 0.9486 | -577.0 | -448.2 | |
| 0.00 | 3.32 | 0.00 | 5.27 | 19.58 | 60.37 | 73.12 | 288.34 | 0.9512 | 428.0 | 154.2 | |
| 0.00 | 2.51 | 0.00 | 3.23 | 22.97 | 55.59 | 68.34 | 291.98 | 0.9244 | 486.0 | 278.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
