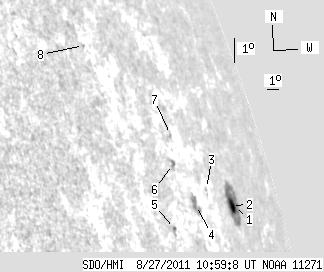

SDO HMI 2011-08-27 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.91 | 55.29 | 14.99 | 110.97 | 17.10 | 63.73 | 77.03 | 285.92 | 0.9688 | -169.8 | -88.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 34.46 | 4.43 | 77.15 | 16.71 | 65.51 | 78.81 | 285.60 | 0.9765 | 356.5 | 22.8 | |
| 4.58 | -1.00 | 10.03 | -1.00 | 16.78 | 65.14 | 78.43 | 285.66 | 0.9751 | -434.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 2.16 | 17.62 | 62.64 | 75.94 | 286.39 | 0.9648 | -98.0 | -104.5 | |
| 0.00 | 10.50 | 0.00 | 17.68 | 17.28 | 60.97 | 74.27 | 285.96 | 0.9572 | -645.0 | -500.3 | |
| 0.36 | 3.05 | 0.53 | 4.47 | 16.88 | 58.16 | 71.46 | 285.44 | 0.9427 | 329.8 | 275.3 | |
| 0.00 | 3.86 | 0.00 | 6.14 | 18.72 | 59.82 | 73.12 | 287.43 | 0.9513 | -504.0 | -418.3 | |
| 0.00 | 1.26 | 0.00 | 2.07 | 19.58 | 60.62 | 73.92 | 288.36 | 0.9552 | 38.0 | 78.4 | |
| 0.00 | 0.99 | 0.00 | 1.30 | 23.03 | 55.65 | 68.95 | 292.03 | 0.9281 | 422.0 | 358.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
