SDO HMI 2011-08-27 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.37 | 51.15 | 14.63 | 104.96 | 17.23 | 63.48 | 77.33 | 286.08 | 0.9698 | -159.5 | -101.7 | |
|
previous
or next observation for the same group /

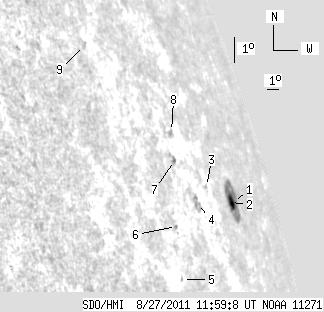

back to the solar disc SDO HMI 2011-08-27 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 30.86 | 4.20 | 71.91 | 16.76 | 65.53 | 79.38 | 285.70 | 0.9785 | 349.8 | -3.2 | |
| 4.58 | -1.00 | 10.43 | -1.00 | 16.79 | 65.06 | 78.91 | 285.69 | 0.9768 | -394.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 1.37 | 17.59 | 62.57 | 76.42 | 286.38 | 0.9669 | -188.0 | -105.0 | |
| 0.00 | 9.69 | 0.00 | 16.85 | 17.24 | 60.96 | 74.81 | 285.94 | 0.9598 | -612.0 | -490.4 | |
| 0.00 | 1.35 | 0.00 | 1.96 | 15.26 | 57.40 | 71.25 | 283.72 | 0.9418 | 55.0 | 30.0 | |
| 0.00 | 1.44 | 0.00 | 2.16 | 16.84 | 58.17 | 72.02 | 285.42 | 0.9458 | 351.0 | 264.1 | |
| 0.00 | 2.69 | 0.00 | 4.41 | 18.73 | 59.95 | 73.80 | 287.46 | 0.9547 | -530.0 | -456.8 | |
| 0.00 | 1.17 | 0.00 | 1.98 | 19.58 | 60.65 | 74.49 | 288.37 | 0.9579 | 46.0 | 6.2 | |
| 0.00 | 3.23 | 0.00 | 4.32 | 22.96 | 55.47 | 69.32 | 291.94 | 0.9303 | 76.0 | 179.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
