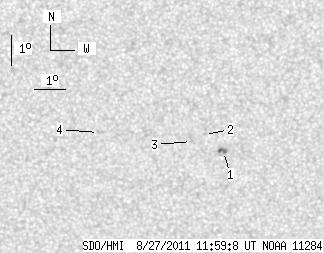

SDO HMI 2011-08-27 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.23 | 8.17 | 1.81 | 4.56 | -18.01 | 357.29 | 11.13 | 203.44 | 0.4624 | 432.0 | 260.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.23 | 4.76 | 1.81 | 2.67 | -18.26 | 358.31 | 12.16 | 205.19 | 0.4719 | 804.5 | 746.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.67 | 357.65 | 11.50 | 204.53 | 0.4595 | 565.0 | 552.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.89 | 357.25 | 11.09 | 203.56 | 0.4601 | 753.0 | 647.8 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -17.53 | 354.23 | 8.07 | 197.88 | 0.4381 | -696.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
