SDO HMI 2011-08-27 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.20 | 39.92 | 13.05 | 89.44 | 17.16 | 63.69 | 78.64 | 286.08 | 0.9749 | -50.4 | -44.9 | |
|
previous
or next observation for the same group /

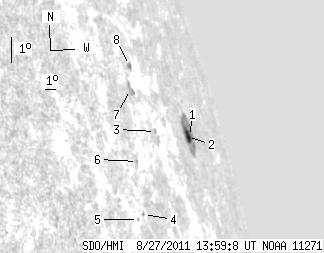

back to the solar disc SDO HMI 2011-08-27 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 25.38 | 4.82 | 64.56 | 16.73 | 65.46 | 80.41 | 285.73 | 0.9819 | 356.6 | -39.1 | |
| 3.32 | -1.00 | 8.23 | -1.00 | 16.77 | 65.14 | 80.09 | 285.75 | 0.9809 | -348.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.85 | 17.41 | 61.08 | 76.03 | 286.18 | 0.9653 | -504.0 | -430.5 | |
| 0.00 | 1.08 | 0.00 | 1.65 | 15.23 | 57.37 | 72.32 | 283.73 | 0.9477 | 136.0 | 80.3 | |
| 0.00 | 1.17 | 0.00 | 1.74 | 15.14 | 56.78 | 71.73 | 283.61 | 0.9445 | 171.0 | 140.9 | |
| 0.00 | 1.35 | 0.00 | 2.14 | 16.80 | 58.20 | 73.15 | 285.42 | 0.9517 | 312.0 | 242.3 | |
| 0.00 | 5.92 | 0.00 | 10.21 | 18.91 | 59.77 | 74.72 | 287.68 | 0.9591 | -286.0 | -221.9 | |
| 0.00 | 3.50 | 0.00 | 6.29 | 19.59 | 60.54 | 75.49 | 288.41 | 0.9625 | 363.0 | 187.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
