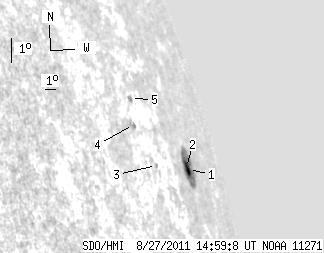

SDO HMI 2011-08-27 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.74 | 34.08 | 15.09 | 84.27 | 17.19 | 64.33 | 79.84 | 286.17 | 0.9795 | -80.8 | -24.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 25.83 | 5.77 | 69.14 | 16.77 | 65.36 | 80.86 | 285.81 | 0.9833 | 373.9 | 14.2 | |
| 3.59 | -1.00 | 9.32 | -1.00 | 16.87 | 65.12 | 80.63 | 285.88 | 0.9826 | -320.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.94 | 17.42 | 61.05 | 76.56 | 286.20 | 0.9675 | -482.0 | -409.6 | |
| 0.00 | 4.13 | 0.00 | 7.37 | 18.86 | 59.89 | 75.40 | 287.65 | 0.9622 | -463.0 | -324.2 | |
| 0.00 | 2.60 | 0.00 | 4.82 | 19.62 | 60.55 | 76.06 | 288.46 | 0.9650 | 315.0 | 233.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
