SDO HMI 2011-08-27 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.88 | 164.87 | 21.01 | 129.23 | 13.34 | 291.61 | -51.22 | 78.54 | 0.7762 | -644.7 | -231.0 | |
|
previous
or next observation for the same group /

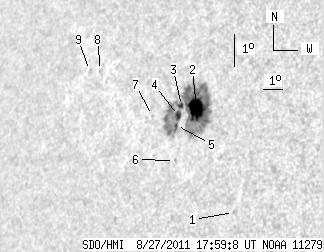

back to the solar disc SDO HMI 2011-08-27 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.73 | 10.47 | 294.46 | -48.38 | 82.27 | 0.7441 | -567.0 | -485.2 | |
| 19.36 | 158.86 | 15.06 | 124.25 | 13.43 | 291.94 | -50.89 | 78.41 | 0.7727 | -958.4 | -248.6 | |
| 2.15 | -2.00 | 1.70 | -2.00 | 13.45 | 291.19 | -51.65 | 78.41 | 0.7808 | -424.6 | 999999 | |
| 3.94 | -2.00 | 3.12 | -2.00 | 13.14 | 291.13 | -51.71 | 78.81 | 0.7814 | -536.6 | 999999 | |
| 1.43 | -2.00 | 1.13 | -2.00 | 12.83 | 291.12 | -51.72 | 79.21 | 0.7814 | -438.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.85 | 11.77 | 291.31 | -51.53 | 80.57 | 0.7792 | -495.0 | -401.8 | |
| 0.00 | 0.99 | 0.00 | 0.80 | 13.02 | 289.83 | -53.00 | 79.01 | 0.7949 | 559.0 | 479.3 | |
| 0.00 | 1.52 | 0.00 | 1.33 | 14.09 | 286.65 | -56.18 | 77.75 | 0.8267 | 549.0 | 368.2 | |
| 0.00 | 1.43 | 0.00 | 1.27 | 14.03 | 286.05 | -56.79 | 77.83 | 0.8325 | 510.0 | 373.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
