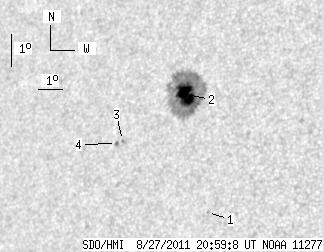

SDO HMI 2011-08-27 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.11 | 137.07 | 15.89 | 90.39 | 17.62 | 300.19 | -40.98 | 71.30 | 0.6622 | -1028.1 | -374.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | 14.17 | 302.00 | -39.18 | 76.24 | 0.6329 | -666.0 | -547.9 | |
| 24.11 | 133.30 | 15.89 | 87.86 | 17.68 | 300.24 | -40.93 | 71.21 | 0.6617 | -1088.3 | -367.5 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 16.07 | 297.99 | -43.19 | 74.04 | 0.6863 | -821.0 | -721.9 | |
| 0.00 | 2.06 | 0.00 | 1.40 | 15.96 | 297.76 | -43.42 | 74.24 | 0.6889 | -641.0 | -512.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
