SDO HMI 2011-08-27 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.41 | 181.34 | 22.24 | 137.38 | 13.32 | 291.55 | -49.62 | 78.51 | 0.7587 | -586.2 | -249.9 | |
|
previous
or next observation for the same group /

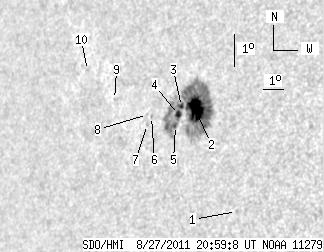

back to the solar disc SDO HMI 2011-08-27 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.90 | 10.51 | 294.45 | -46.73 | 82.23 | 0.7249 | -663.0 | -562.1 | |
| 21.16 | 174.17 | 15.93 | 131.70 | 13.41 | 291.85 | -49.32 | 78.38 | 0.7554 | -976.0 | -277.1 | |
| 2.60 | -2.00 | 1.99 | -2.00 | 13.43 | 291.17 | -50.01 | 78.38 | 0.7630 | -431.8 | 999999 | |
| 3.68 | -2.00 | 2.81 | -2.00 | 13.18 | 291.10 | -50.08 | 78.71 | 0.7638 | -540.4 | 999999 | |
| 1.97 | -2.00 | 1.51 | -2.00 | 12.84 | 291.04 | -50.13 | 79.17 | 0.7642 | -361.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 13.00 | 289.81 | -51.36 | 79.00 | 0.7776 | 555.0 | 538.1 | |
| 0.00 | 1.34 | 0.00 | 1.06 | 12.74 | 289.69 | -51.49 | 79.33 | 0.7789 | 558.0 | 437.9 | |
| 0.00 | 0.99 | 0.00 | 0.78 | 13.04 | 289.60 | -51.58 | 78.95 | 0.7799 | 404.0 | 353.5 | |
| 0.00 | 0.99 | 0.00 | 0.81 | 13.33 | 287.82 | -53.36 | 78.63 | 0.7986 | 536.0 | 448.3 | |
| 0.00 | 1.43 | 0.00 | 1.22 | 14.06 | 286.12 | -55.05 | 77.77 | 0.8158 | 528.0 | 379.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
