SDO HMI 2011-08-27 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.18 | 43.13 | 6.55 | 21.45 | 7.61 | 345.40 | 4.78 | 273.58 | 0.0847 | -211.3 | -291.8 | |
|
previous
or next observation for the same group /

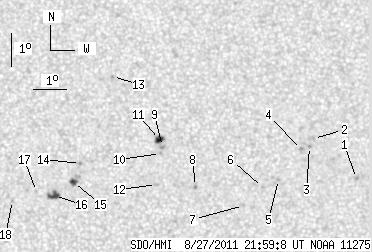

back to the solar disc SDO HMI 2011-08-27 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.81 | 7.15 | 351.69 | 11.07 | 270.90 | 0.1914 | -1080.0 | -845.2 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 8.39 | 350.39 | 9.76 | 278.19 | 0.1703 | -869.0 | -587.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.15 | 350.26 | 9.63 | 276.85 | 0.1676 | -1050.0 | -819.4 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 8.06 | 350.01 | 9.38 | 276.48 | 0.1632 | -1044.0 | -744.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.17 | 349.28 | 8.65 | 270.95 | 0.1500 | -1052.0 | -854.0 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 6.93 | 348.78 | 8.16 | 269.29 | 0.1415 | -841.0 | -614.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 6.40 | 348.19 | 7.56 | 265.08 | 0.1319 | -783.0 | -621.6 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.00 | 346.72 | 6.10 | 269.34 | 0.1059 | -1043.0 | -846.0 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 8.22 | 345.72 | 5.10 | 282.75 | 0.0906 | -1032.0 | -928.2 | |
| 0.00 | 1.26 | 0.00 | 0.62 | 8.01 | 345.66 | 5.04 | 280.56 | 0.0888 | -951.0 | -703.7 | |
| 4.21 | 8.88 | 2.10 | 4.41 | 8.43 | 345.64 | 5.01 | 285.28 | 0.0900 | -1153.3 | -857.0 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 7.07 | 345.53 | 4.90 | 269.89 | 0.0852 | -933.0 | -652.2 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 10.35 | 344.21 | 3.59 | 312.73 | 0.0842 | 1027.0 | 761.9 | |
| 0.00 | 1.26 | 0.00 | 0.62 | 7.72 | 343.21 | 2.58 | 283.75 | 0.0462 | 1117.0 | 926.9 | |
| 2.96 | 6.28 | 1.47 | 3.11 | 7.15 | 342.99 | 2.37 | 271.25 | 0.0412 | 1130.7 | 797.0 | |
| 6.01 | 6.90 | 2.98 | 3.42 | 6.76 | 342.41 | 1.79 | 259.06 | 0.0317 | 1063.5 | 967.6 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 6.88 | 341.86 | 1.24 | 259.78 | 0.0219 | 780.0 | 529.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.61 | 341.13 | 0.50 | 225.43 | 0.0123 | 790.0 | 599.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
