SDO HMI 2011-08-27 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.85 | 149.11 | 15.36 | 96.08 | 17.65 | 300.19 | -39.33 | 70.87 | 0.6416 | -986.3 | -381.5 | |
|
previous
or next observation for the same group /

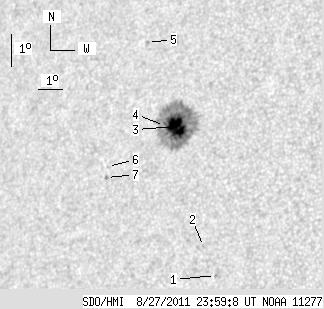

back to the solar disc SDO HMI 2011-08-27 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.83 | 13.29 | 302.76 | -36.76 | 77.27 | 0.5994 | -715.0 | -591.9 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 14.13 | 302.13 | -37.39 | 75.99 | 0.6091 | -461.0 | -432.5 | |
| 22.86 | 142.84 | 14.72 | 92.01 | 17.70 | 300.24 | -39.28 | 70.77 | 0.6411 | -1139.7 | -375.4 | |
| 0.99 | -3.00 | 0.64 | -3.00 | 17.69 | 299.74 | -39.78 | 70.91 | 0.6473 | -421.4 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.26 | 20.18 | 298.30 | -41.23 | 67.61 | 0.6713 | -629.0 | -476.1 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 16.26 | 297.73 | -41.79 | 73.52 | 0.6694 | -615.0 | -504.4 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 15.92 | 297.78 | -41.75 | 74.01 | 0.6683 | -614.0 | -481.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
