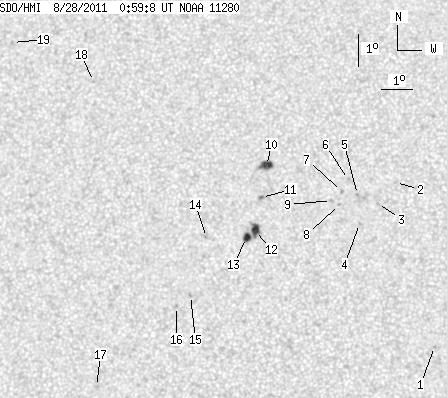

SDO HMI 2011-08-28 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.72 | 45.85 | 10.11 | 23.51 | 17.73 | 328.66 | -10.32 | 42.02 | 0.2557 | 45.6 | 26.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.67 | 334.34 | -4.63 | 34.41 | 0.1394 | -936.0 | -723.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 18.68 | 332.97 | -6.00 | 26.22 | 0.2253 | -798.0 | -587.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 18.03 | 332.42 | -6.56 | 29.73 | 0.2199 | -980.0 | -766.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.40 | 331.86 | -7.11 | 33.34 | 0.2158 | -913.0 | -688.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.30 | 331.76 | -7.21 | 31.45 | 0.2294 | -912.0 | -764.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.76 | 331.45 | -7.52 | 31.43 | 0.2387 | -687.0 | -580.7 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 18.38 | 331.24 | -7.73 | 33.01 | 0.2353 | -820.0 | -634.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.98 | 331.20 | -7.77 | 34.16 | 0.2301 | -1029.0 | -824.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 18.10 | 330.94 | -8.04 | 34.73 | 0.2343 | -697.0 | -506.2 | |
| 7.53 | 9.68 | 3.87 | 4.98 | 19.14 | 328.78 | -10.20 | 38.51 | 0.2698 | -1013.8 | -770.6 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 18.15 | 328.67 | -10.30 | 41.31 | 0.2585 | 1189.0 | 1000.9 | |
| 7.35 | 16.32 | 3.76 | 8.34 | 17.13 | 328.54 | -10.43 | 44.54 | 0.2478 | 1117.8 | 732.7 | |
| 4.84 | -12.00 | 2.48 | -12.00 | 16.91 | 328.26 | -10.71 | 45.93 | 0.2486 | 1054.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 16.88 | 326.97 | -12.00 | 49.13 | 0.2642 | 836.0 | 677.5 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 15.09 | 326.57 | -12.40 | 55.70 | 0.2522 | 872.0 | 686.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 14.74 | 326.14 | -12.83 | 57.72 | 0.2552 | 978.0 | 751.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.23 | 323.72 | -15.25 | 70.03 | 0.2747 | 743.0 | 603.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 21.60 | 322.82 | -16.15 | 45.46 | 0.3645 | 710.0 | 504.2 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 22.72 | 319.89 | -19.08 | 47.61 | 0.4100 | 741.0 | 588.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
