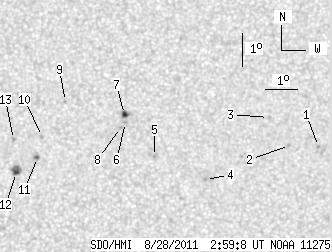

SDO HMI 2011-08-28 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.72 | 26.47 | 3.35 | 13.21 | 7.44 | 344.96 | 7.09 | 272.52 | 0.1237 | -232.2 | 65.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.27 | 351.76 | 13.88 | 271.49 | 0.2392 | -791.0 | -670.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 7.32 | 350.85 | 12.98 | 271.73 | 0.2238 | -776.0 | -680.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.19 | 350.22 | 12.34 | 275.81 | 0.2137 | -781.0 | -608.6 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 6.36 | 348.21 | 10.34 | 266.40 | 0.1795 | -972.0 | -747.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.09 | 346.65 | 8.77 | 270.35 | 0.1521 | -979.0 | -777.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 8.13 | 345.77 | 7.90 | 277.91 | 0.1380 | -1007.0 | -820.0 | |
| 2.96 | 4.40 | 1.48 | 2.20 | 8.38 | 345.75 | 7.87 | 279.68 | 0.1381 | -1061.0 | -742.3 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 7.99 | 345.61 | 7.74 | 276.95 | 0.1350 | -907.0 | -612.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.80 | 343.93 | 6.06 | 286.04 | 0.1090 | 862.0 | 698.8 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 7.75 | 343.21 | 5.34 | 277.11 | 0.0933 | 983.0 | 747.5 | |
| 1.52 | 1.79 | 0.76 | 0.89 | 7.11 | 343.05 | 5.18 | 270.25 | 0.0899 | 1034.6 | 1139.0 | |
| 2.24 | 7.62 | 1.11 | 3.79 | 6.66 | 342.40 | 4.53 | 264.52 | 0.0792 | 1061.7 | 977.4 | |
| 0.00 | 1.61 | 0.00 | 0.80 | 7.66 | 342.32 | 4.45 | 277.35 | 0.0778 | 873.0 | 666.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
