SDO HMI 2011-08-28 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.24 | 0.00 | 5.56 | 17.95 | 359.43 | 22.10 | 298.59 | 0.4097 | -557.6 | -435.1 | |
|
previous
or next observation for the same group /

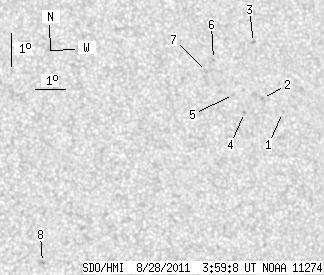

back to the solar disc SDO HMI 2011-08-28 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | 17.65 | 1.76 | 24.43 | 296.13 | 0.4408 | -622.0 | -596.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 18.11 | 1.13 | 23.80 | 297.63 | 0.4347 | -712.0 | -525.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 19.86 | 1.07 | 23.75 | 301.31 | 0.4452 | -816.0 | -641.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 17.71 | 0.44 | 23.12 | 297.34 | 0.4228 | -876.0 | -720.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 18.28 | 0.14 | 22.82 | 298.85 | 0.4221 | -755.0 | -664.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 19.39 | 359.61 | 22.28 | 301.76 | 0.4224 | -711.0 | -535.6 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 19.04 | 359.31 | 21.99 | 301.28 | 0.4159 | -852.0 | -650.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 13.40 | 353.27 | 15.94 | 293.11 | 0.2918 | 883.0 | 709.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
