SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.05 | 145.25 | 14.34 | 90.33 | 17.67 | 300.16 | -36.62 | 70.03 | 0.6069 | -1002.2 | -411.3 | |
|
previous
or next observation for the same group /

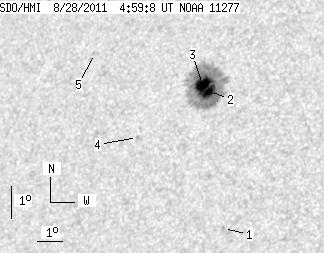

back to the solar disc SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.14 | 13.48 | 301.78 | -35.00 | 76.62 | 0.5755 | -730.0 | -617.6 | |
| 7.89 | 141.12 | 4.90 | 87.74 | 17.61 | 300.41 | -36.37 | 70.05 | 0.6035 | -1296.6 | -415.1 | |
| 15.16 | -2.00 | 9.44 | -2.00 | 17.80 | 300.08 | -36.69 | 69.84 | 0.6082 | -1069.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 16.00 | 297.90 | -38.88 | 73.32 | 0.6321 | -744.0 | -638.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 18.42 | 295.48 | -41.30 | 70.21 | 0.6678 | 541.0 | 544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
