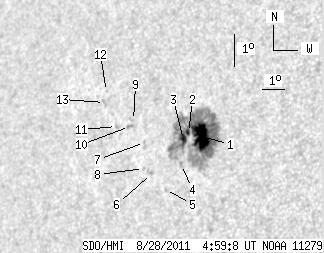

SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.53 | 208.96 | 24.10 | 146.44 | 13.37 | 291.49 | -45.29 | 78.18 | 0.7086 | -520.8 | -230.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.91 | 194.59 | 18.73 | 135.96 | 13.41 | 291.84 | -44.94 | 78.09 | 0.7045 | -1028.9 | -286.0 | |
| 2.15 | -1.00 | 1.51 | -1.00 | 13.49 | 291.24 | -45.54 | 78.04 | 0.7117 | -528.7 | 999999 | |
| 5.47 | -1.00 | 3.86 | -1.00 | 13.26 | 291.07 | -45.70 | 78.38 | 0.7136 | -560.2 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.58 | 12.49 | 291.16 | -45.62 | 79.44 | 0.7121 | -590.0 | -490.3 | |
| 0.00 | 1.17 | 0.00 | 0.83 | 11.68 | 290.63 | -46.15 | 80.61 | 0.7181 | 444.0 | 319.1 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 12.11 | 289.90 | -46.88 | 80.04 | 0.7269 | 662.0 | 577.5 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 13.01 | 289.36 | -47.42 | 78.82 | 0.7336 | 505.0 | 456.3 | |
| 0.00 | 1.17 | 0.00 | 0.84 | 12.23 | 289.51 | -47.27 | 79.89 | 0.7315 | 617.0 | 539.8 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 13.63 | 288.69 | -48.09 | 78.03 | 0.7416 | 506.0 | 518.7 | |
| 0.00 | 2.51 | 0.00 | 1.85 | 13.43 | 288.55 | -48.22 | 78.30 | 0.7430 | 645.0 | 607.2 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 13.38 | 287.95 | -48.82 | 78.41 | 0.7498 | 591.0 | 510.8 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 14.39 | 287.18 | -49.59 | 77.11 | 0.7589 | 543.0 | 434.5 | |
| 0.00 | 2.42 | 0.00 | 1.83 | 14.05 | 287.19 | -49.59 | 77.56 | 0.7587 | 550.0 | 504.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
