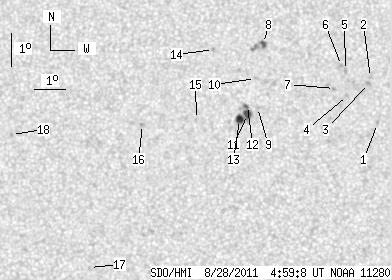

SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.65 | 44.43 | 6.44 | 22.60 | 17.65 | 328.80 | -7.98 | 35.26 | 0.2307 | 138.9 | -26.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.89 | 332.71 | -4.07 | 21.78 | 0.1840 | -831.0 | -660.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 18.31 | 332.45 | -4.33 | 20.23 | 0.2081 | -776.0 | -519.0 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 18.12 | 332.39 | -4.39 | 20.82 | 0.2055 | -860.0 | -764.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.74 | 331.73 | -5.05 | 24.38 | 0.2039 | -919.0 | -672.3 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 18.51 | 331.64 | -5.13 | 23.19 | 0.2165 | -829.0 | -636.0 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 18.67 | 331.51 | -5.27 | 23.42 | 0.2197 | -759.0 | -587.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.96 | 331.31 | -5.47 | 25.68 | 0.2102 | -928.0 | -848.7 | |
| 2.69 | 7.72 | 1.38 | 3.95 | 19.31 | 328.97 | -7.81 | 31.12 | 0.2492 | -1013.6 | -887.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.34 | 328.87 | -7.91 | 36.35 | 0.2226 | 639.0 | 300.8 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 18.23 | 328.76 | -8.01 | 34.34 | 0.2358 | 970.0 | 754.4 | |
| 4.04 | 17.85 | 2.05 | 9.07 | 17.12 | 328.56 | -8.22 | 38.01 | 0.2229 | 1216.4 | 774.8 | |
| 0.63 | -11.00 | 0.32 | -11.00 | 17.39 | 328.55 | -8.23 | 37.27 | 0.2267 | 817.9 | 999999 | |
| 5.29 | -11.00 | 2.69 | -11.00 | 16.96 | 328.31 | -8.47 | 39.29 | 0.2235 | 965.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 19.10 | 327.36 | -9.42 | 36.47 | 0.2613 | -902.0 | -711.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.93 | 326.93 | -9.85 | 43.54 | 0.2386 | 752.0 | 607.8 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 16.74 | 325.20 | -11.57 | 48.58 | 0.2574 | 993.0 | 781.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.33 | 323.75 | -13.02 | 66.89 | 0.2404 | 826.0 | 668.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.31 | 320.97 | -15.80 | 57.85 | 0.3101 | 831.0 | 633.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
