SDO HMI 2011-08-28 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 54.45 | 5.42 | 149.47 | -20.41 | 258.89 | -76.24 | 112.32 | 0.9845 | -351.9 | -34.0 | |
|
previous
or next observation for the same group /

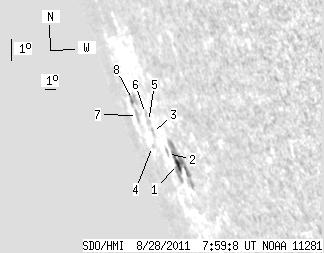

back to the solar disc SDO HMI 2011-08-28 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 33.91 | 5.42 | 82.63 | -20.93 | 260.30 | -74.83 | 113.11 | 0.9810 | -278.4 | 210.0 | |
| 0.00 | 2.24 | 0.00 | 6.00 | -20.68 | 259.37 | -75.77 | 112.68 | 0.9836 | -242.0 | -202.0 | |
| 0.00 | 2.06 | 0.00 | 6.14 | -20.14 | 258.11 | -77.03 | 111.90 | 0.9868 | -510.0 | -417.5 | |
| 0.00 | 1.26 | 0.00 | 4.19 | -20.73 | 257.09 | -78.04 | 112.30 | 0.9896 | -357.0 | -317.1 | |
| 0.00 | 1.88 | 0.00 | 5.58 | -19.78 | 258.10 | -77.03 | 111.54 | 0.9866 | -456.0 | -304.9 | |
| 0.00 | 1.88 | 0.00 | 5.52 | -19.52 | 258.07 | -77.06 | 111.28 | 0.9865 | -515.0 | -417.3 | |
| 0.00 | 4.58 | 0.00 | 16.49 | -19.80 | 256.33 | -78.81 | 111.24 | 0.9909 | -312.0 | -270.9 | |
| 0.00 | 6.64 | 0.00 | 22.92 | -19.26 | 256.48 | -78.66 | 110.73 | 0.9903 | -469.0 | -328.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
