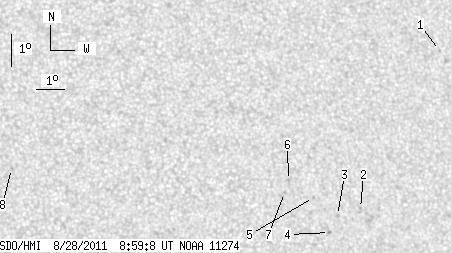

SDO HMI 2011-08-28 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.37 | 0.00 | 4.64 | 19.03 | 359.23 | 24.64 | 299.46 | 0.4529 | -570.6 | -439.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.32 | 23.06 | 5.76 | 31.17 | 301.45 | 0.5603 | -771.0 | -571.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 18.33 | 1.82 | 27.23 | 295.55 | 0.4833 | -798.0 | -629.4 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 18.16 | 0.96 | 26.38 | 295.78 | 0.4707 | -792.0 | -644.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 17.65 | 0.60 | 26.01 | 295.01 | 0.4630 | -858.0 | -650.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.76 | 0.21 | 25.62 | 297.53 | 0.4636 | -802.0 | -667.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 19.33 | 359.41 | 24.83 | 299.31 | 0.4563 | -522.0 | -419.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.96 | 359.22 | 24.63 | 298.73 | 0.4513 | -812.0 | -680.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 20.09 | 350.01 | 15.42 | 312.49 | 0.3401 | 790.0 | 584.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
