SDO HMI 2011-08-28 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.47 | 53.83 | 13.06 | 141.39 | -20.37 | 258.92 | -75.67 | 112.40 | 0.9829 | -57.6 | -62.6 | |
|
previous
or next observation for the same group /

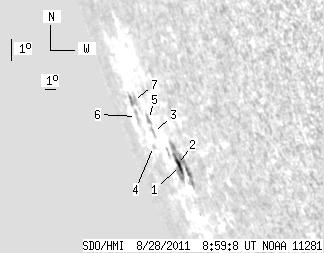

back to the solar disc SDO HMI 2011-08-28 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.05 | 34.00 | 7.21 | 79.54 | -20.90 | 260.54 | -74.05 | 113.24 | 0.9785 | 326.5 | 200.3 | |
| 2.42 | -1.00 | 5.85 | -1.00 | -20.91 | 260.16 | -74.43 | 113.18 | 0.9798 | -227.4 | 999999 | |
| 0.00 | 3.50 | 0.00 | 9.82 | -20.09 | 258.21 | -76.37 | 111.98 | 0.9850 | -512.0 | -421.6 | |
| 0.00 | 1.70 | 0.00 | 5.25 | -20.67 | 257.27 | -77.31 | 112.38 | 0.9878 | -337.0 | -324.6 | |
| 0.00 | 3.41 | 0.00 | 9.56 | -19.67 | 258.16 | -76.43 | 111.55 | 0.9849 | -408.0 | -410.3 | |
| 0.00 | 3.86 | 0.00 | 13.27 | -19.83 | 256.07 | -78.52 | 111.32 | 0.9903 | -284.0 | -233.7 | |
| 0.00 | 7.36 | 0.00 | 23.95 | -19.24 | 256.62 | -77.97 | 110.83 | 0.9887 | -522.0 | -353.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
