SDO HMI 2011-08-28 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 22.09 | 1.94 | 11.19 | 7.54 | 346.14 | 12.10 | 272.67 | 0.2088 | -257.9 | -172.7 | |
|
previous
or next observation for the same group /

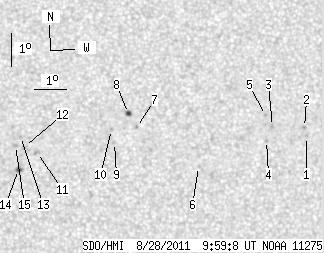

back to the solar disc SDO HMI 2011-08-28 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.44 | 351.52 | 17.48 | 272.20 | 0.2994 | -725.0 | -614.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 7.71 | 351.46 | 17.43 | 273.12 | 0.2985 | -780.0 | -613.0 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 7.78 | 350.44 | 16.41 | 273.42 | 0.2816 | -988.0 | -735.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.36 | 350.24 | 16.20 | 271.93 | 0.2781 | -857.0 | -718.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 8.12 | 350.24 | 16.20 | 274.66 | 0.2783 | -773.0 | -527.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 6.64 | 348.06 | 14.02 | 268.95 | 0.2418 | -649.0 | -535.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 7.88 | 346.16 | 12.12 | 274.45 | 0.2095 | -896.0 | -722.8 | |
| 1.97 | 2.78 | 1.00 | 1.41 | 8.31 | 345.92 | 11.88 | 276.60 | 0.2060 | -916.6 | -816.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.44 | 345.46 | 11.42 | 272.41 | 0.1974 | -762.0 | -599.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.84 | 345.37 | 11.34 | 274.44 | 0.1962 | -856.0 | -630.9 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 7.19 | 343.06 | 9.02 | 271.09 | 0.1564 | 728.0 | 601.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.38 | 342.66 | 8.63 | 272.36 | 0.1496 | 715.0 | 629.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.69 | 342.55 | 8.51 | 274.45 | 0.1478 | 897.0 | 669.0 | |
| 1.88 | 2.51 | 0.94 | 1.26 | 6.69 | 342.47 | 8.43 | 267.63 | 0.1464 | 1055.7 | 847.6 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 7.42 | 342.39 | 8.35 | 272.65 | 0.1448 | 1017.0 | 687.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
