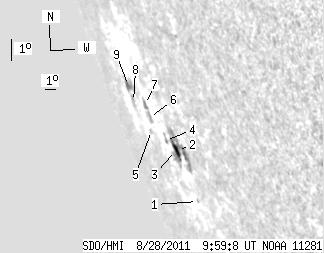

SDO HMI 2011-08-28 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.34 | 63.96 | 22.12 | 160.55 | -20.43 | 258.89 | -75.15 | 112.56 | 0.9814 | -184.3 | -41.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 2.53 | -22.61 | 260.47 | -73.57 | 115.05 | 0.9783 | 285.0 | 242.4 | |
| 2.60 | 37.32 | 5.91 | 83.91 | -20.91 | 260.47 | -73.57 | 113.35 | 0.9769 | 301.0 | 193.1 | |
| 2.06 | -2.00 | 4.79 | -2.00 | -20.94 | 260.19 | -73.85 | 113.33 | 0.9779 | -235.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 4.64 | -20.72 | 259.27 | -74.77 | 112.92 | 0.9807 | -205.0 | -190.9 | |
| 0.00 | 2.15 | 0.00 | 6.17 | -20.60 | 257.60 | -76.44 | 112.47 | 0.9855 | -316.0 | -314.7 | |
| 0.00 | 5.20 | 0.00 | 13.99 | -20.11 | 258.07 | -75.97 | 112.07 | 0.9839 | -563.0 | -451.1 | |
| 0.00 | 3.86 | 0.00 | 10.29 | -19.67 | 258.18 | -75.86 | 111.65 | 0.9833 | -406.0 | -395.9 | |
| 0.00 | 4.93 | 0.00 | 15.85 | -19.81 | 256.22 | -77.82 | 111.43 | 0.9886 | -304.0 | -237.0 | |
| 3.68 | 7.54 | 11.42 | 23.17 | -19.27 | 256.35 | -77.69 | 110.91 | 0.9880 | -378.6 | -302.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
