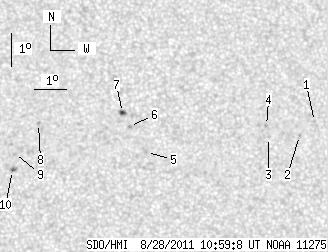

SDO HMI 2011-08-28 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.14 | 14.11 | 1.59 | 7.17 | 7.64 | 346.76 | 13.27 | 273.13 | 0.2287 | -367.5 | -279.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | 7.85 | 352.01 | 18.52 | 273.52 | 0.3166 | -626.0 | -451.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.45 | 351.51 | 18.02 | 272.24 | 0.3083 | -768.0 | -646.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.42 | 350.51 | 17.03 | 272.15 | 0.2918 | -606.0 | -483.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 7.79 | 350.47 | 16.98 | 273.41 | 0.2911 | -995.0 | -740.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 7.09 | 346.64 | 13.16 | 270.76 | 0.2269 | -650.0 | -557.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 7.89 | 346.14 | 12.65 | 274.41 | 0.2185 | -946.0 | -723.3 | |
| 2.06 | 3.05 | 1.05 | 1.55 | 8.32 | 345.93 | 12.44 | 276.46 | 0.2155 | -919.1 | -812.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.05 | 343.30 | 9.81 | 276.19 | 0.1705 | 865.0 | 637.4 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.16 | 342.54 | 9.05 | 270.90 | 0.1568 | 665.0 | 628.2 | |
| 1.08 | 1.61 | 0.54 | 0.81 | 6.65 | 342.47 | 8.98 | 267.59 | 0.1559 | 928.3 | 981.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
