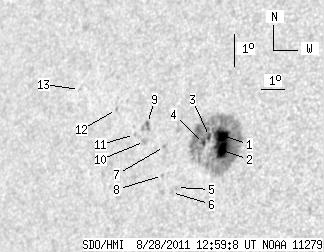

SDO HMI 2011-08-28 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.45 | 235.95 | 21.20 | 154.40 | 13.42 | 291.48 | -40.91 | 77.65 | 0.6542 | -446.1 | -247.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.64 | 218.07 | 8.23 | 142.23 | 13.66 | 291.75 | -40.64 | 77.25 | 0.6511 | -894.7 | -318.2 | |
| 14.08 | -1.00 | 9.15 | -1.00 | 13.21 | 291.84 | -40.55 | 77.94 | 0.6494 | -1050.6 | 999999 | |
| 2.42 | -1.00 | 1.59 | -1.00 | 13.59 | 291.27 | -41.12 | 77.42 | 0.6572 | -518.7 | 999999 | |
| 1.52 | -1.00 | 1.00 | -1.00 | 13.36 | 291.07 | -41.32 | 77.80 | 0.6595 | -567.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 11.94 | 290.23 | -42.16 | 80.01 | 0.6691 | 525.0 | 523.9 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 11.78 | 290.05 | -42.34 | 80.27 | 0.6713 | 620.0 | 483.3 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 13.14 | 289.47 | -42.91 | 78.30 | 0.6795 | 710.0 | 582.8 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 12.26 | 289.57 | -42.81 | 79.59 | 0.6776 | 641.0 | 528.4 | |
| 1.79 | 6.28 | 1.23 | 4.29 | 13.77 | 288.60 | -43.79 | 77.46 | 0.6908 | 566.4 | 640.1 | |
| 0.00 | 3.86 | 0.00 | 2.63 | 13.22 | 288.60 | -43.79 | 78.26 | 0.6904 | 723.0 | 550.0 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 13.40 | 288.12 | -44.27 | 78.05 | 0.6964 | 456.0 | 416.5 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 14.08 | 287.16 | -45.23 | 77.16 | 0.7085 | 539.0 | 483.9 | |
| 0.00 | 0.72 | 0.00 | 0.52 | 14.54 | 285.36 | -47.02 | 76.69 | 0.7301 | 433.0 | 364.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
