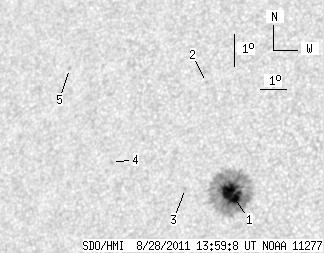

SDO HMI 2011-08-28 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.83 | 161.65 | 14.62 | 95.35 | 17.84 | 300.02 | -31.82 | 67.89 | 0.5438 | -855.3 | -341.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.83 | 157.07 | 14.62 | 92.51 | 17.78 | 300.14 | -31.70 | 67.94 | 0.5420 | -1086.0 | -354.8 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 21.14 | 298.42 | -33.41 | 63.02 | 0.5786 | -635.0 | -493.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 17.82 | 298.39 | -33.45 | 68.62 | 0.5657 | -619.0 | -526.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 18.42 | 295.37 | -36.47 | 68.75 | 0.6073 | 651.0 | 590.2 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 21.19 | 292.88 | -38.96 | 65.35 | 0.6473 | 555.0 | 427.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
