SDO HMI 2011-08-28 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.41 | 240.28 | 22.93 | 156.21 | 13.40 | 291.41 | -40.43 | 77.62 | 0.6481 | -403.3 | -227.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

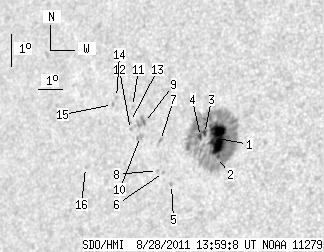

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.59 | 217.59 | 19.10 | 140.81 | 13.43 | 291.79 | -40.05 | 77.53 | 0.6433 | -979.0 | -320.3 | |
| 0.54 | -1.00 | 0.35 | -1.00 | 12.85 | 291.90 | -39.94 | 78.41 | 0.6412 | -852.0 | 999999 | |
| 1.61 | -1.00 | 1.05 | -1.00 | 13.54 | 291.23 | -40.61 | 77.44 | 0.6506 | -575.9 | 999999 | |
| 2.15 | -1.00 | 1.40 | -1.00 | 13.44 | 291.09 | -40.75 | 77.61 | 0.6523 | -586.6 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.01 | 11.89 | 290.19 | -41.65 | 80.05 | 0.6625 | 650.0 | 576.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 12.23 | 289.79 | -42.04 | 79.58 | 0.6678 | 492.0 | 383.1 | |
| 0.00 | 1.43 | 0.00 | 0.96 | 13.18 | 289.47 | -42.37 | 78.18 | 0.6726 | 557.0 | 466.8 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 12.27 | 289.53 | -42.30 | 79.54 | 0.6711 | 691.0 | 566.8 | |
| 1.52 | 6.90 | 1.03 | 4.68 | 13.67 | 288.68 | -43.15 | 77.54 | 0.6829 | 698.2 | 612.6 | |
| 0.00 | 3.68 | 0.00 | 2.49 | 13.23 | 288.61 | -43.23 | 78.19 | 0.6834 | 727.0 | 611.2 | |
| 0.00 | 1.34 | 0.00 | 0.92 | 14.11 | 288.06 | -43.78 | 76.97 | 0.6910 | 545.0 | 380.8 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 13.41 | 288.14 | -43.70 | 77.97 | 0.6894 | 492.0 | 462.5 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 13.65 | 288.08 | -43.75 | 77.63 | 0.6903 | 568.0 | 437.8 | |
| 0.00 | 1.34 | 0.00 | 0.93 | 14.32 | 287.31 | -44.53 | 76.74 | 0.7004 | 639.0 | 542.7 | |
| 0.00 | 1.17 | 0.00 | 0.81 | 14.10 | 287.19 | -44.65 | 77.08 | 0.7016 | 573.0 | 500.1 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 12.10 | 286.46 | -45.37 | 79.97 | 0.7090 | 536.0 | 476.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
