SDO HMI 2011-08-28 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.62 | 54.52 | 27.06 | 110.30 | -20.48 | 259.38 | -71.90 | 113.29 | 0.9703 | 142.9 | -83.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

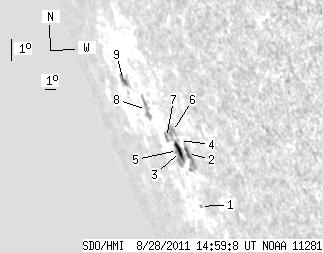

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 2.14 | -22.88 | 260.18 | -71.10 | 115.87 | 0.9698 | 269.0 | 264.1 | |
| 4.39 | 10.94 | 8.05 | 20.06 | -20.99 | 261.08 | -70.20 | 114.19 | 0.9642 | 548.4 | 382.5 | |
| 4.75 | 15.24 | 9.12 | 29.67 | -21.01 | 260.37 | -70.92 | 114.04 | 0.9672 | 276.4 | -120.8 | |
| 0.00 | 0.81 | 0.00 | 1.51 | -20.60 | 260.72 | -70.57 | 113.71 | 0.9653 | 291.0 | 367.8 | |
| 2.24 | -3.00 | 4.37 | -3.00 | -21.01 | 260.06 | -71.23 | 113.97 | 0.9684 | -175.2 | 999999 | |
| 0.00 | 6.54 | 0.00 | 12.49 | -20.35 | 260.29 | -71.00 | 113.36 | 0.9668 | 156.0 | 102.0 | |
| 0.00 | 3.41 | 0.00 | 6.94 | -20.67 | 259.31 | -71.98 | 113.46 | 0.9710 | 75.0 | -33.4 | |
| 0.00 | 11.12 | 0.00 | 24.28 | -19.90 | 258.03 | -73.25 | 112.41 | 0.9750 | -311.0 | -392.5 | |
| 2.24 | 5.38 | 5.52 | 13.21 | -19.17 | 256.20 | -75.08 | 111.31 | 0.9805 | -374.6 | -289.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
