SDO HMI 2011-08-28 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.22 | 255.51 | 22.26 | 162.33 | 13.49 | 291.38 | -38.80 | 77.27 | 0.6269 | -435.8 | -237.1 | |
|
previous
or next observation for the same group /

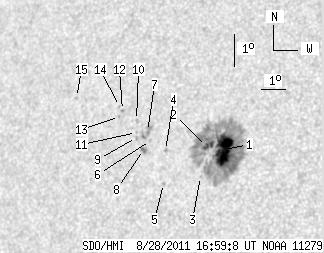

back to the solar disc SDO HMI 2011-08-28 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.81 | 232.02 | 20.08 | 146.78 | 13.47 | 291.75 | -38.43 | 77.25 | 0.6220 | -1072.2 | -329.6 | |
| 2.78 | -1.00 | 1.77 | -1.00 | 13.50 | 291.06 | -39.12 | 77.29 | 0.6311 | -669.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 12.58 | 291.00 | -39.18 | 78.76 | 0.6309 | -476.0 | -295.7 | |
| 0.00 | 1.52 | 0.00 | 0.99 | 13.26 | 289.44 | -40.74 | 77.89 | 0.6519 | 705.0 | 518.5 | |
| 0.00 | 1.25 | 0.00 | 0.82 | 12.25 | 289.56 | -40.62 | 79.42 | 0.6495 | 722.0 | 497.9 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 13.51 | 288.77 | -41.41 | 77.59 | 0.6608 | 529.0 | 521.8 | |
| 0.00 | 7.62 | 0.00 | 5.03 | 13.77 | 288.59 | -41.59 | 77.22 | 0.6634 | 711.0 | 630.6 | |
| 0.63 | 2.51 | 0.41 | 1.66 | 13.21 | 288.54 | -41.64 | 78.06 | 0.6634 | 737.7 | 686.1 | |
| 0.00 | 1.52 | 0.00 | 1.01 | 13.55 | 288.17 | -42.01 | 77.59 | 0.6684 | 573.0 | 486.3 | |
| 0.00 | 1.61 | 0.00 | 1.07 | 14.07 | 288.06 | -42.12 | 76.84 | 0.6704 | 587.0 | 508.1 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 13.70 | 288.14 | -42.04 | 77.37 | 0.6690 | 561.0 | 486.6 | |
| 0.00 | 1.34 | 0.00 | 0.90 | 14.32 | 287.40 | -42.77 | 76.55 | 0.6789 | 741.0 | 592.5 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 14.13 | 287.32 | -42.86 | 76.84 | 0.6797 | 662.0 | 608.4 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 14.43 | 287.25 | -42.93 | 76.40 | 0.6809 | 417.0 | 379.3 | |
| 0.00 | 1.17 | 0.00 | 0.81 | 14.55 | 285.35 | -44.83 | 76.46 | 0.7042 | 575.0 | 393.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
