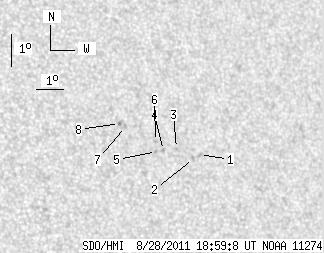

SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.47 | 0.00 | 6.76 | 18.21 | 0.82 | 31.75 | 292.80 | 0.5443 | -749.2 | -636.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.34 | 17.90 | 1.96 | 32.89 | 291.73 | 0.5584 | -593.0 | -580.4 | |
| 0.00 | 1.97 | 0.00 | 1.17 | 17.79 | 1.71 | 32.64 | 291.64 | 0.5547 | -760.0 | -629.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 18.14 | 1.14 | 32.07 | 292.51 | 0.5483 | -697.0 | -611.7 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 18.11 | 0.65 | 31.58 | 292.68 | 0.5416 | -755.0 | -618.5 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 18.09 | 0.38 | 31.31 | 292.78 | 0.5379 | -786.0 | -683.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 18.40 | 0.41 | 31.34 | 293.33 | 0.5395 | -752.0 | -610.0 | |
| 0.00 | 1.34 | 0.00 | 0.78 | 18.93 | 359.40 | 30.33 | 294.80 | 0.5282 | -743.0 | -635.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 19.03 | 359.20 | 30.13 | 295.10 | 0.5260 | -908.0 | -814.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
