SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.69 | 0.00 | 14.04 | 7.38 | 348.47 | 19.39 | 271.98 | 0.3304 | -326.7 | -344.2 | |
|
previous
or next observation for the same group /

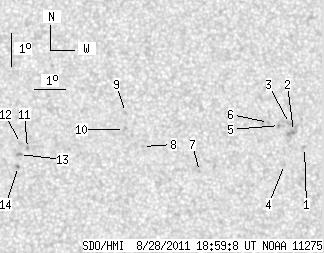

back to the solar disc SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.62 | 6.95 | 351.79 | 22.72 | 271.00 | 0.3851 | -787.0 | -576.3 | |
| 0.00 | 6.90 | 0.00 | 3.69 | 7.45 | 351.46 | 22.39 | 272.29 | 0.3795 | -886.0 | -705.2 | |
| 0.00 | 2.69 | 0.00 | 1.44 | 7.70 | 351.34 | 22.27 | 272.95 | 0.3776 | -913.0 | -691.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 6.47 | 351.11 | 22.04 | 269.65 | 0.3745 | -738.0 | -627.6 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 7.66 | 351.01 | 21.93 | 272.83 | 0.3723 | -855.0 | -705.5 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 7.76 | 350.65 | 21.58 | 273.12 | 0.3665 | -783.0 | -597.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 6.38 | 348.34 | 19.27 | 268.95 | 0.3294 | -852.0 | -633.5 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 7.21 | 346.54 | 17.47 | 271.39 | 0.2992 | -778.0 | -641.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.25 | 346.04 | 16.97 | 274.98 | 0.2912 | -960.0 | -669.2 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 7.74 | 345.99 | 16.91 | 273.21 | 0.2900 | -807.0 | -690.0 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 7.27 | 342.90 | 13.82 | 271.48 | 0.2382 | 851.0 | 733.7 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 7.42 | 342.68 | 13.61 | 272.16 | 0.2346 | 995.0 | 751.9 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 7.09 | 342.64 | 13.57 | 270.73 | 0.2339 | 965.0 | 791.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 6.73 | 342.60 | 13.53 | 269.17 | 0.2333 | 974.0 | 817.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
