SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.43 | 256.97 | 24.58 | 161.07 | 13.50 | 291.28 | -37.80 | 77.10 | 0.6134 | -587.0 | -241.8 | |
|
previous
or next observation for the same group /

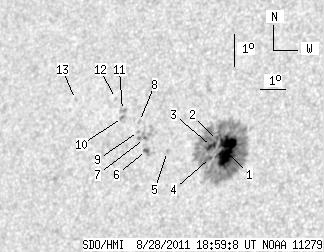

back to the solar disc SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.72 | 231.00 | 19.73 | 144.05 | 13.46 | 291.76 | -37.31 | 77.09 | 0.6070 | -1140.4 | -350.6 | |
| 1.52 | -1.00 | 0.95 | -1.00 | 13.74 | 291.35 | -37.72 | 76.71 | 0.6129 | -510.1 | 999999 | |
| 4.12 | -1.00 | 2.58 | -1.00 | 13.54 | 291.15 | -37.92 | 77.06 | 0.6153 | -693.6 | 999999 | |
| 0.72 | -1.00 | 0.45 | -1.00 | 13.20 | 291.18 | -37.90 | 77.60 | 0.6145 | -394.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 13.25 | 289.45 | -39.63 | 77.76 | 0.6375 | 685.0 | 542.2 | |
| 0.99 | 3.58 | 0.64 | 2.33 | 13.22 | 288.60 | -40.47 | 77.93 | 0.6485 | 782.4 | 624.8 | |
| 0.36 | 11.11 | 0.23 | 7.23 | 13.57 | 288.44 | -40.63 | 77.40 | 0.6509 | 771.5 | 614.9 | |
| 0.00 | 1.34 | 0.00 | 0.88 | 14.07 | 288.13 | -40.94 | 76.68 | 0.6555 | 535.0 | 463.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 13.77 | 288.15 | -40.92 | 77.14 | 0.6548 | 580.0 | 504.3 | |
| 0.00 | 2.42 | 0.00 | 1.60 | 14.14 | 287.41 | -41.67 | 76.68 | 0.6648 | 735.0 | 579.7 | |
| 0.00 | 2.60 | 0.00 | 1.72 | 14.35 | 287.36 | -41.71 | 76.37 | 0.6656 | 607.0 | 572.5 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 14.69 | 286.98 | -42.09 | 75.92 | 0.6708 | 591.0 | 442.8 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 14.52 | 285.31 | -43.76 | 76.39 | 0.6912 | 451.0 | 368.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
