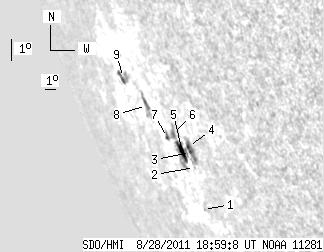

SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.31 | 62.00 | 15.90 | 110.54 | -20.48 | 259.28 | -69.79 | 113.79 | 0.9617 | 211.8 | -57.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.59 | -23.05 | 260.07 | -69.01 | 116.56 | 0.9616 | 352.0 | 300.4 | |
| 0.00 | 1.16 | 0.00 | 1.94 | -21.54 | 260.85 | -68.22 | 115.24 | 0.9562 | 331.0 | 309.7 | |
| 1.16 | 31.63 | 1.91 | 53.38 | -21.02 | 261.01 | -68.06 | 114.75 | 0.9548 | 612.3 | 214.5 | |
| 0.81 | -3.00 | 1.32 | -3.00 | -20.82 | 261.03 | -68.04 | 114.55 | 0.9544 | 633.0 | 999999 | |
| 6.18 | -3.00 | 10.56 | -3.00 | -21.08 | 260.23 | -68.84 | 114.61 | 0.9584 | 288.4 | 999999 | |
| 0.00 | 5.91 | 0.00 | 10.16 | -20.47 | 260.02 | -69.05 | 113.95 | 0.9586 | -84.0 | -46.6 | |
| 1.16 | 3.32 | 2.11 | 5.96 | -20.74 | 259.19 | -69.89 | 114.02 | 0.9626 | -104.5 | 50.2 | |
| 0.00 | 10.66 | 0.00 | 20.17 | -19.81 | 258.11 | -70.96 | 112.83 | 0.9661 | -423.0 | -371.5 | |
| 0.00 | 8.42 | 0.00 | 17.34 | -19.08 | 256.51 | -72.56 | 111.74 | 0.9717 | -579.0 | -415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
