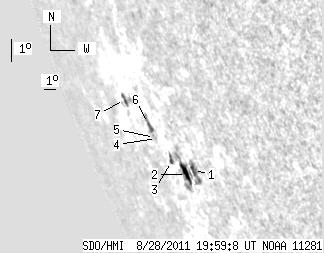

SDO HMI 2011-08-28 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.78 | 53.48 | 25.89 | 92.32 | -20.53 | 259.36 | -69.16 | 113.99 | 0.9590 | 46.2 | -33.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 12.10 | 4.00 | 19.24 | -20.89 | 261.01 | -67.51 | 114.76 | 0.9519 | 684.9 | 498.2 | |
| 6.99 | 21.86 | 11.63 | 36.62 | -21.12 | 260.18 | -68.34 | 114.78 | 0.9562 | 289.1 | -48.2 | |
| 1.61 | 3.76 | 2.84 | 6.59 | -20.81 | 259.12 | -69.40 | 114.21 | 0.9606 | -144.4 | 32.3 | |
| 0.00 | 1.16 | 0.00 | 2.11 | -20.14 | 258.39 | -70.13 | 113.35 | 0.9629 | -314.0 | -237.1 | |
| 0.00 | 1.25 | 0.00 | 2.29 | -20.13 | 258.21 | -70.31 | 113.30 | 0.9637 | -409.0 | -377.4 | |
| 0.00 | 6.99 | 0.00 | 12.75 | -19.68 | 258.09 | -70.43 | 112.82 | 0.9637 | -535.0 | -386.5 | |
| 3.67 | 6.36 | 7.42 | 12.72 | -19.11 | 256.24 | -72.28 | 111.83 | 0.9707 | -417.7 | -456.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
