SDO HMI 2011-08-28 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 14.95 | 0.58 | 8.78 | 18.23 | 358.81 | 30.85 | 293.48 | 0.5319 | -407.7 | -319.1 | |
|
previous
or next observation for the same group /

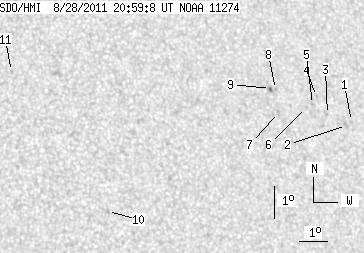

back to the solar disc SDO HMI 2011-08-28 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.70 | 17.86 | 2.03 | 34.07 | 291.17 | 0.5740 | -734.0 | -542.5 | |
| 0.00 | 2.06 | 0.00 | 1.24 | 17.75 | 1.82 | 33.85 | 291.07 | 0.5707 | -574.0 | -543.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 18.13 | 1.17 | 33.21 | 291.99 | 0.5635 | -767.0 | -571.1 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 18.71 | 0.88 | 32.92 | 293.12 | 0.5617 | -368.0 | -349.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.48 | 0.68 | 32.71 | 292.80 | 0.5581 | -603.0 | -427.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.40 | 0.43 | 32.47 | 292.78 | 0.5546 | -641.0 | -524.8 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 18.31 | 359.36 | 31.40 | 293.13 | 0.5399 | -739.0 | -596.4 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 19.02 | 359.40 | 31.43 | 294.38 | 0.5433 | -712.0 | -598.1 | |
| 0.99 | 1.97 | 0.58 | 1.16 | 19.07 | 359.22 | 31.25 | 294.54 | 0.5411 | -796.0 | -752.5 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 15.63 | 352.77 | 24.81 | 291.46 | 0.4360 | 640.0 | 514.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 20.09 | 350.07 | 22.10 | 303.38 | 0.4249 | 646.0 | 605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
