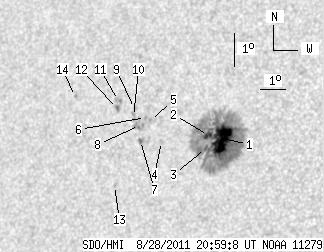

SDO HMI 2011-08-28 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.79 | 269.07 | 23.83 | 166.19 | 13.54 | 291.28 | -36.68 | 76.86 | 0.5984 | -536.6 | -241.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-28 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.69 | 241.39 | 20.67 | 148.37 | 13.52 | 291.73 | -36.23 | 76.82 | 0.5924 | -1148.4 | -359.5 | |
| 3.49 | -1.00 | 2.16 | -1.00 | 13.57 | 291.22 | -36.75 | 76.82 | 0.5995 | -734.4 | 999999 | |
| 1.61 | -1.00 | 1.00 | -1.00 | 13.17 | 291.17 | -36.79 | 77.50 | 0.5995 | -426.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.02 | 13.25 | 289.42 | -38.54 | 77.63 | 0.6231 | 577.0 | 498.3 | |
| 0.00 | 1.61 | 0.00 | 1.03 | 13.86 | 288.87 | -39.10 | 76.75 | 0.6313 | 738.0 | 668.4 | |
| 0.00 | 1.61 | 0.00 | 1.03 | 13.93 | 288.65 | -39.32 | 76.67 | 0.6343 | 665.0 | 604.7 | |
| 0.00 | 2.51 | 0.00 | 1.60 | 13.22 | 288.59 | -39.38 | 77.80 | 0.6341 | 820.0 | 713.1 | |
| 0.00 | 7.53 | 0.00 | 4.82 | 13.67 | 288.46 | -39.51 | 77.11 | 0.6364 | 568.0 | 619.2 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 14.17 | 288.15 | -39.81 | 76.37 | 0.6410 | 580.0 | 463.9 | |
| 0.00 | 3.40 | 0.00 | 2.19 | 13.92 | 288.16 | -39.80 | 76.75 | 0.6406 | 453.0 | 540.8 | |
| 0.00 | 3.23 | 0.00 | 2.10 | 14.36 | 287.46 | -40.51 | 76.19 | 0.6503 | 705.0 | 541.9 | |
| 0.00 | 2.60 | 0.00 | 1.69 | 14.12 | 287.47 | -40.50 | 76.56 | 0.6498 | 673.0 | 589.5 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 11.78 | 287.80 | -40.16 | 80.14 | 0.6431 | 719.0 | 579.5 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 14.34 | 285.66 | -42.30 | 76.47 | 0.6730 | 562.0 | 431.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
