SDO HMI 2011-08-28 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.55 | 0.00 | 7.36 | 18.90 | 356.70 | 30.39 | 295.48 | 0.5290 | -69.4 | -232.3 | |
|
previous
or next observation for the same group /

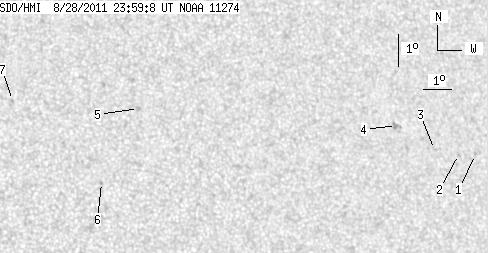

back to the solar disc SDO HMI 2011-08-28 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.61 | 17.93 | 2.18 | 35.87 | 290.61 | 0.5979 | -686.0 | -535.1 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 17.98 | 1.53 | 35.22 | 290.92 | 0.5894 | -681.0 | -573.4 | |
| 0.00 | 1.61 | 0.00 | 0.98 | 18.19 | 0.64 | 34.33 | 291.62 | 0.5785 | -648.0 | -537.9 | |
| 0.00 | 4.39 | 0.00 | 2.63 | 19.02 | 359.37 | 33.06 | 293.57 | 0.5648 | -775.0 | -635.9 | |
| 0.00 | 1.97 | 0.00 | 1.09 | 20.08 | 350.12 | 23.81 | 301.67 | 0.4474 | 753.0 | 584.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 17.86 | 348.51 | 22.20 | 298.44 | 0.4107 | 788.0 | 625.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.52 | 345.81 | 19.50 | 307.30 | 0.3946 | 763.0 | 553.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
