SDO HMI 2011-08-29 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.63 | 155.13 | 14.66 | 85.38 | 17.85 | 300.02 | -24.10 | 63.23 | 0.4373 | -1041.8 | -454.1 | |
|
previous
or next observation for the same group /

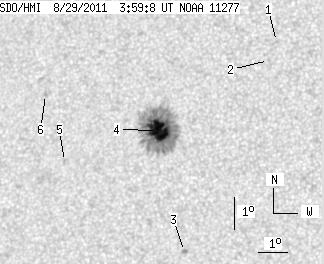

back to the solar disc SDO HMI 2011-08-29 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.80 | 303.68 | -20.43 | 53.27 | 0.4089 | -792.0 | -586.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.20 | 303.49 | -20.62 | 54.77 | 0.4064 | -693.0 | -415.8 | |
| 0.00 | 2.60 | 0.00 | 1.40 | 14.21 | 301.36 | -22.76 | 70.54 | 0.3994 | -817.0 | -736.9 | |
| 26.63 | 147.77 | 14.66 | 81.34 | 17.87 | 300.01 | -24.11 | 63.19 | 0.4374 | -1244.5 | -457.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.75 | 296.86 | -27.25 | 67.67 | 0.4759 | -688.0 | -673.5 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 18.76 | 295.84 | -28.27 | 64.33 | 0.4996 | 754.0 | 540.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
