SDO HMI 2011-08-29 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.29 | 0.00 | 8.24 | 17.17 | 327.78 | 3.66 | 308.87 | 0.1978 | 414.0 | 372.1 | |
|
previous
or next observation for the same group /

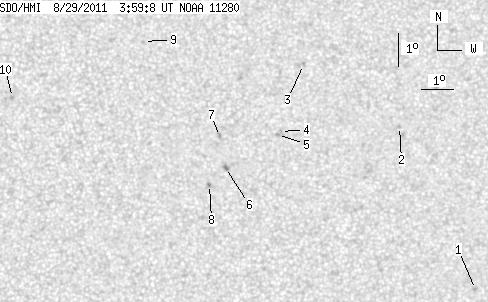

back to the solar disc SDO HMI 2011-08-29 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.86 | 12.56 | 334.61 | 10.50 | 298.50 | 0.2032 | -908.0 | -721.2 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 17.59 | 332.42 | 8.30 | 323.00 | 0.2298 | -802.0 | -561.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 19.55 | 329.41 | 5.29 | 338.02 | 0.2333 | -874.0 | -686.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 17.49 | 328.61 | 4.50 | 337.44 | 0.1958 | 897.0 | 725.6 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 17.40 | 328.51 | 4.40 | 337.69 | 0.1937 | 1104.0 | 866.5 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 16.40 | 326.85 | 2.73 | 344.14 | 0.1681 | 1074.0 | 959.1 | |
| 0.00 | 2.60 | 0.00 | 1.31 | 17.35 | 326.67 | 2.56 | 346.51 | 0.1832 | 921.0 | 642.1 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 15.88 | 326.34 | 2.22 | 346.22 | 0.1572 | 1064.0 | 911.9 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 20.30 | 324.26 | 0.15 | 359.40 | 0.2286 | 710.0 | 555.4 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 18.54 | 320.07 | -4.04 | 18.65 | 0.2099 | 954.0 | 858.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
