SDO HMI 2011-08-29 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.94 | 0.00 | 7.43 | 18.36 | 0.12 | 36.55 | 291.08 | 0.6080 | -740.7 | -600.0 | |
|
previous
or next observation for the same group /

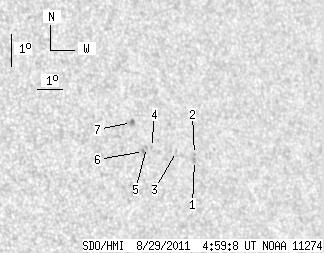

back to the solar disc SDO HMI 2011-08-29 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.25 | 17.73 | 1.47 | 37.91 | 289.63 | 0.6236 | -777.0 | -606.5 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 17.91 | 1.52 | 37.95 | 289.91 | 0.6246 | -631.0 | -540.1 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 18.06 | 0.83 | 37.26 | 290.35 | 0.6162 | -523.0 | -383.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 18.25 | 359.88 | 36.31 | 290.97 | 0.6046 | -674.0 | -585.3 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 18.26 | 359.69 | 36.12 | 291.06 | 0.6021 | -767.0 | -636.1 | |
| 0.00 | 1.97 | 0.00 | 1.22 | 18.15 | 359.54 | 35.97 | 290.93 | 0.5998 | -890.0 | -683.5 | |
| 0.00 | 3.77 | 0.00 | 2.33 | 19.07 | 359.29 | 35.72 | 292.52 | 0.5996 | -923.0 | -628.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
