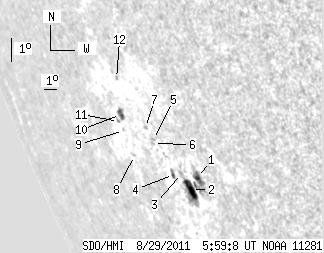

SDO HMI 2011-08-29 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.11 | 58.66 | 24.74 | 79.07 | -20.52 | 259.19 | -63.83 | 115.42 | 0.9320 | 28.3 | 130.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 38.56 | 1.94 | 50.19 | -20.63 | 260.89 | -62.13 | 116.02 | 0.9223 | 627.9 | 327.2 | |
| 10.40 | -1.00 | 13.69 | -1.00 | -21.12 | 260.10 | -62.92 | 116.29 | 0.9280 | 373.1 | 999999 | |
| 0.00 | 1.79 | 0.00 | 2.38 | -20.62 | 259.75 | -63.27 | 115.67 | 0.9291 | -174.0 | -105.1 | |
| 1.26 | 3.50 | 1.71 | 4.77 | -20.74 | 259.07 | -63.94 | 115.59 | 0.9331 | 122.3 | 51.7 | |
| 0.00 | 1.17 | 0.00 | 1.61 | -19.65 | 258.41 | -64.61 | 114.28 | 0.9349 | -77.0 | -178.8 | |
| 0.00 | 1.17 | 0.00 | 1.62 | -19.79 | 258.30 | -64.72 | 114.40 | 0.9358 | -204.0 | -187.5 | |
| 0.00 | 1.88 | 0.00 | 2.63 | -19.29 | 258.07 | -64.95 | 113.82 | 0.9362 | -390.0 | -327.2 | |
| 0.00 | 0.99 | 0.00 | 1.51 | -20.43 | 256.27 | -66.75 | 114.50 | 0.9476 | -230.0 | -211.3 | |
| 0.00 | 0.81 | 0.00 | 1.24 | -19.63 | 256.05 | -66.97 | 113.62 | 0.9475 | -360.0 | -319.9 | |
| 4.93 | 6.28 | 7.40 | 9.41 | -19.08 | 256.26 | -66.76 | 113.11 | 0.9456 | -469.7 | -468.5 | |
| 0.00 | 1.08 | 0.00 | 1.65 | -19.35 | 255.86 | -67.16 | 113.29 | 0.9481 | -270.0 | -189.2 | |
| 0.00 | 1.43 | 0.00 | 2.06 | -17.82 | 256.91 | -66.11 | 111.99 | 0.9402 | -427.0 | -348.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
