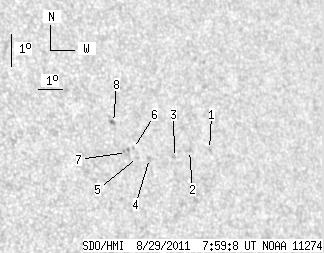

SDO HMI 2011-08-29 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.88 | 0.00 | 10.17 | 18.12 | 0.69 | 38.77 | 290.02 | 0.6355 | -682.8 | -586.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.83 | 17.95 | 3.03 | 41.11 | 289.11 | 0.6643 | -416.0 | -424.1 | |
| 0.00 | 2.78 | 0.00 | 1.82 | 17.98 | 2.20 | 40.28 | 289.37 | 0.6541 | -641.0 | -540.1 | |
| 0.00 | 1.52 | 0.00 | 0.99 | 17.82 | 1.53 | 39.61 | 289.29 | 0.6453 | -718.0 | -555.1 | |
| 0.00 | 2.15 | 0.00 | 1.37 | 17.86 | 0.52 | 38.59 | 289.64 | 0.6327 | -775.0 | -573.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 17.93 | 0.04 | 38.12 | 289.89 | 0.6268 | -722.0 | -608.2 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 18.21 | 359.96 | 38.03 | 290.36 | 0.6265 | -670.0 | -526.0 | |
| 0.00 | 4.13 | 0.00 | 2.61 | 18.11 | 359.65 | 37.72 | 290.30 | 0.6223 | -673.0 | -619.2 | |
| 0.00 | 1.97 | 0.00 | 1.24 | 19.07 | 359.37 | 37.44 | 291.90 | 0.6216 | -847.0 | -752.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
