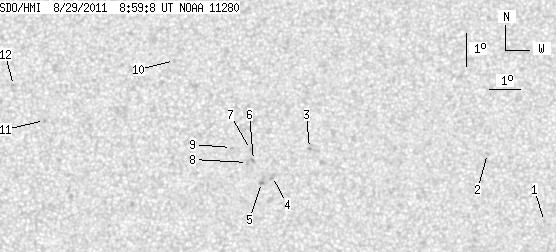

SDO HMI 2011-08-29 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.23 | 0.00 | 8.71 | 17.48 | 326.58 | 5.20 | 335.39 | 0.2116 | 592.8 | 537.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.07 | 335.94 | 14.56 | 300.31 | 0.2825 | -792.0 | -613.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.21 | 334.24 | 12.86 | 309.91 | 0.2785 | -746.0 | -547.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.48 | 328.52 | 7.14 | 326.69 | 0.2170 | 977.0 | 808.6 | |
| 0.00 | 3.23 | 0.00 | 1.63 | 16.63 | 327.31 | 5.93 | 329.13 | 0.1939 | 738.0 | 596.2 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 16.45 | 326.96 | 5.58 | 330.16 | 0.1882 | 1144.0 | 931.6 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 17.13 | 326.72 | 5.35 | 332.93 | 0.1965 | 859.0 | 676.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 17.47 | 326.64 | 5.26 | 334.09 | 0.2010 | 929.0 | 716.0 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 17.07 | 326.53 | 5.15 | 333.62 | 0.1941 | 828.0 | 695.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 17.54 | 326.03 | 4.66 | 336.85 | 0.1978 | 606.0 | 538.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 20.25 | 324.26 | 2.89 | 348.23 | 0.2329 | 755.0 | 593.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 18.39 | 320.08 | -1.29 | 6.26 | 0.1974 | 989.0 | 781.8 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 19.47 | 319.08 | -2.30 | 10.02 | 0.2181 | 827.0 | 619.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
