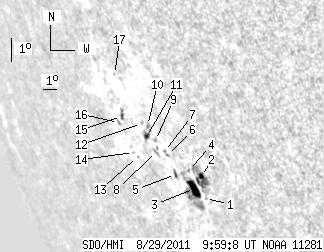

SDO HMI 2011-08-29 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.29 | 83.49 | 22.69 | 103.64 | -20.47 | 259.37 | -61.46 | 116.08 | 0.9178 | 67.5 | 52.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.75 | -21.35 | 260.58 | -60.25 | 117.37 | 0.9123 | 521.0 | 503.6 | |
| 2.69 | 20.53 | 3.16 | 24.29 | -20.59 | 260.83 | -59.99 | 116.66 | 0.9089 | 691.5 | 517.7 | |
| 10.04 | 32.91 | 12.22 | 40.36 | -21.08 | 260.04 | -60.79 | 116.91 | 0.9151 | 394.9 | -37.7 | |
| 0.00 | 1.08 | 0.00 | 1.30 | -20.47 | 260.05 | -60.78 | 116.29 | 0.9136 | 313.0 | 265.2 | |
| 0.72 | 3.50 | 0.90 | 4.39 | -20.73 | 258.99 | -61.84 | 116.22 | 0.9207 | 230.6 | 108.5 | |
| 0.00 | 1.17 | 0.00 | 1.46 | -20.11 | 258.87 | -61.95 | 115.53 | 0.9202 | 385.0 | 307.8 | |
| 0.00 | 1.34 | 0.00 | 1.69 | -19.99 | 258.75 | -62.08 | 115.37 | 0.9207 | 302.0 | 248.3 | |
| 0.00 | 4.30 | 0.00 | 5.53 | -20.06 | 258.14 | -62.69 | 115.26 | 0.9245 | -303.0 | -251.1 | |
| 0.00 | 1.52 | 0.00 | 1.94 | -19.67 | 258.34 | -62.49 | 114.92 | 0.9225 | -15.0 | -66.8 | |
| 0.00 | 2.15 | 0.00 | 2.74 | -19.20 | 258.10 | -62.73 | 114.36 | 0.9231 | -630.0 | -470.1 | |
| 2.96 | 5.02 | 3.84 | 6.49 | -19.61 | 257.75 | -63.08 | 114.67 | 0.9260 | -527.5 | -319.7 | |
| 0.00 | 0.99 | 0.00 | 1.28 | -19.18 | 257.68 | -63.14 | 114.22 | 0.9255 | -643.0 | -599.5 | |
| 0.00 | 0.90 | 0.00 | 1.24 | -20.42 | 256.48 | -64.35 | 115.14 | 0.9348 | -324.0 | -294.4 | |
| 0.00 | 0.99 | 0.00 | 1.37 | -20.31 | 256.26 | -64.57 | 114.97 | 0.9358 | -453.0 | -363.5 | |
| 1.88 | 3.95 | 2.57 | 5.37 | -19.12 | 256.26 | -64.57 | 113.74 | 0.9337 | -534.0 | -510.3 | |
| 0.00 | 1.70 | 0.00 | 2.38 | -19.36 | 255.85 | -64.98 | 113.88 | 0.9365 | -301.0 | -228.9 | |
| 0.00 | 0.81 | 0.00 | 1.06 | -17.68 | 256.75 | -64.08 | 112.39 | 0.9284 | -332.0 | -303.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
