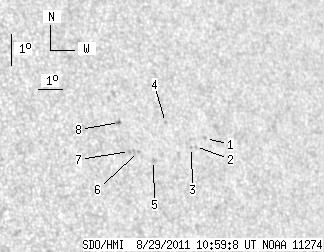

SDO HMI 2011-08-29 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.25 | 0.00 | 6.06 | 18.32 | 0.87 | 40.60 | 289.82 | 0.6588 | -625.6 | -532.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.79 | 18.29 | 2.85 | 42.57 | 289.27 | 0.6828 | -537.0 | -420.9 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 18.08 | 2.36 | 42.08 | 289.08 | 0.6764 | -552.0 | -486.1 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 18.06 | 2.18 | 41.90 | 289.10 | 0.6742 | -627.0 | -571.1 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 18.91 | 1.32 | 41.04 | 290.56 | 0.6657 | -436.0 | -410.4 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 17.79 | 0.49 | 40.22 | 289.10 | 0.6529 | -550.0 | -457.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 18.11 | 359.96 | 39.68 | 289.73 | 0.6470 | -709.0 | -584.6 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 18.14 | 359.59 | 39.31 | 289.88 | 0.6425 | -777.0 | -615.9 | |
| 0.00 | 1.61 | 0.00 | 1.04 | 19.06 | 359.43 | 39.15 | 291.33 | 0.6429 | -817.0 | -687.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
